The All-newGraphic P1620
64” Laminator

The Most Versatile Large Format Laminator On The Market

Copy of Wide Format Laminator

INTRODUCING The Most Versatile Large Format Laminator On the Market

When you want to be able to take care of all the fine details, you never want performance issues to get in your way. That’s why we’ve created a compact piece of kit that combines years of expertise into a single flexible package. Just what you need when cutting corners isn’t an option.

  • Flexible: A tool that grows with your business
  • Adaptable: No job too big, or too small
  • Versatile: Everything Print instantly taken care of
  • Reliable: Designed by the leaders in the industry
  • £2,995.00
    Starting at (plus VAT)
  • Pneumatic
    Roller system
  • 1610mm
    Max material width

Our Most Flexible Machine Ever

We always knew we could create a machine that took care of everything, and the Mounter’s Mate P1620 is proof of that. It’s our best machine with a pneumatic lift, media feed and take up reels.Is the only machine that makes laminating 50m rolls look easy at this price point. And it’s the only machine you can assemble yourself and a friend just 60 minutes. What else do you need to know?


The Smarter Way to Improve the laminating process

Wasting time isn’t an option in business, which is why we’ve created a product that works all day long, and never needs a day off. It may be compact and lightweight, but that doesn’t mean it can’t handle even the toughest of tasks. Take a look at the specs below, and see for yourself how the P1620 takes care of business.

video Block
Double-click here to add a video by URL or embed code. Learn more

Introducing the Most Reliable Machine in the Industry

•   Our best ever laminator comes complete with integrated Pneumatic roller lift and lower and silent compressor as standard. Incredible performance for an everyday affordable price

•  Laminates 50m+ rolls with ease thanks to the ultra durable media feed shaft, and material take up shaft, at the rear

•   The simple way to mount to foamex or dibond boards without ever having to make manual height adjustments

•  Laminates and mounts up to 1620 mm wide with the click of a button

•   Tailor made for quick and easy customer assembly

•   Quick release media shafts means you can leave your toolbox in the corner

video Block
Double-click here to add a video by URL or embed code. Learn more

P1620 Wide Format Laminator
Customer Testimonials

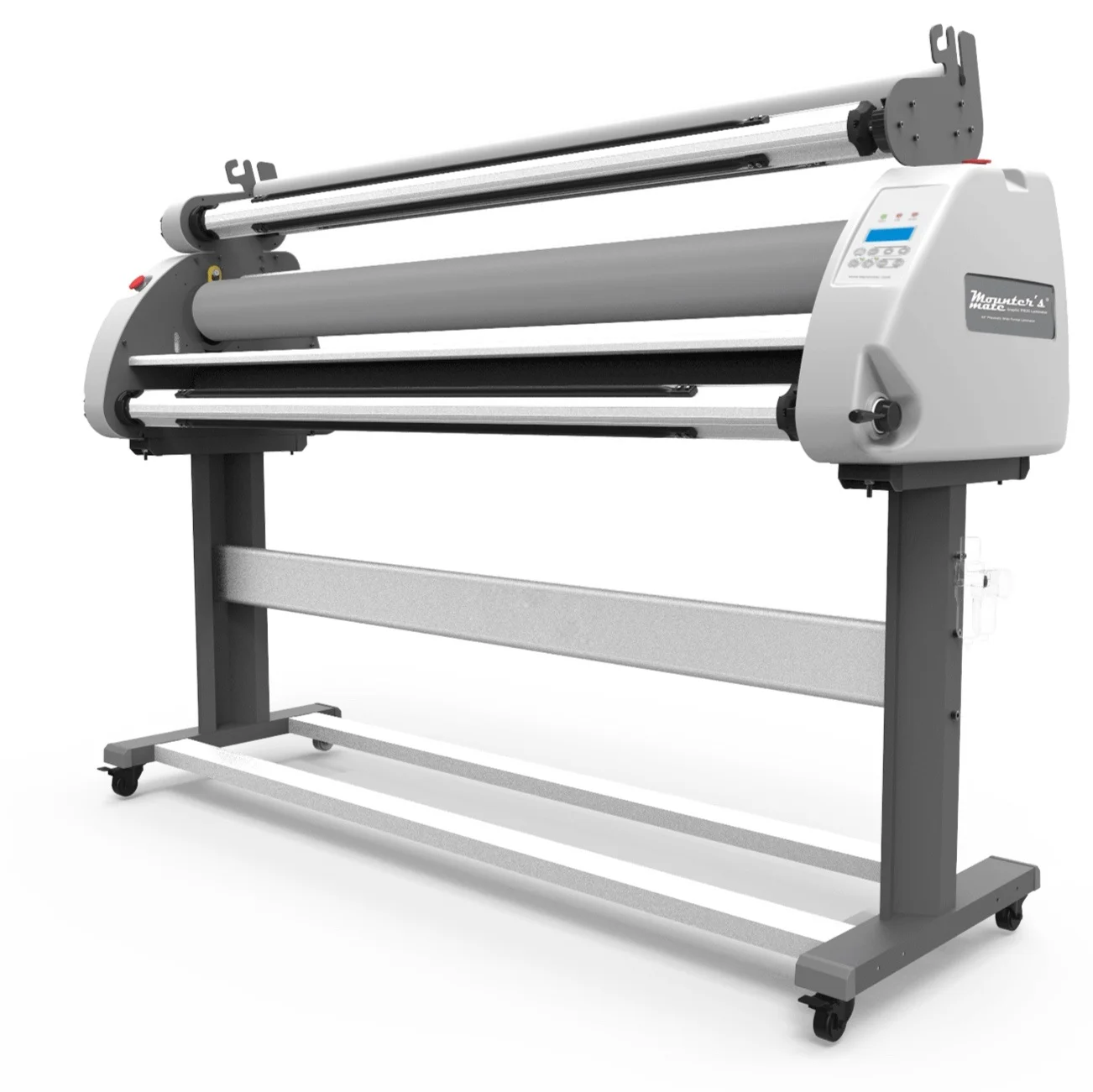

Mounters Mate P1620 Large Format Laminator

Mounter's Mate 1600hs wide format laminator specification

General Specifications

  • Speed: Up to 9.0 m/min

  • Mount materials up to 25 mm in thickness

  • Single top feed system

  • Hi-capacity laminator with heat assisted roller up to 90 degrees

  • Max. material width: 1620 mm

  • 4 self-locking shafts

  • 8L silent air compressor included

With the new and improved self-locking roll shafts you can save time changing materials and never have to use tools again.

Heating system

  • Internal Infrared heating system (top roller only)

  • Max. Temp: 90 degrees

  • Warm up time: 5 minutes

Main Rollers

  • 2 x 130 mm diameter with high quality grey silicone finish

  • Max. working width: 1620 mm

  • Max. material width: 1600 mm

  • Adjustable pass through speed: 0.1-9.0 m/min

P1620 facts

  • Voltage: 110 V/220 V 50-60 Hz

  • Current: 8 A/230 V or 16 A/110 V

  • Max. power: 2500 W

  • Dimensions of 1600hs: 2060 mm x 720 mm x 1430 mm (W x D x H)

  • Net Weight: 190 kg

  • 12 month on-site manufactures warranty
